Superior ET Model

• Rain Bird’s Central Control Systems use weather sensor input to determine ET rates based upon a field‑proven proprietary equation for ET.

Automatic ET Download/Selective Usage

• Automatically download weather data daily and calculate ET to determine irrigation times for the entire system or specific areas, holes or stations.

ET Override

• Allows you to easily set certain programs to ignore ET values when determining run times

Rain Bucket

• Allows rainfall from one day to be carried over to the following day(s) for more accurate ET calculations.

Multiple Station Capacity

• Connect up to five (5) weather stations to one central control system for more precise ET values based upon different weather conditions around the golf course

Max Rainfall

• User-defined maximum rainfall can be set to limit the amount of acceptable rainfall for clay soil types or other areas that are subject to high run-off.

Weather Data Reports

• Generate reports to show current or past weather conditions by the hour, day, week, month or year.

Multiple Languages

• • Choose from 10 different languages (English, French, German, Italian, Japanese, Korean, Portuguese, Spanish, Swedish or Chinese).

English or Metric Measurement Units

Custom Alerts

• • • Rain
    • High or Low Ambient Temperatures
    • High Winds
    • Rainfall Intensity
    • These alarms exceed user-defined thresholds in user‑defined time periods. The system will reset alarms automatically when temperature, rain, or wind conditions are again within acceptable ranges for irrigation

Automatic Shut Off/Turn On or Pause/Resume

• • • When alarm conditions are detected, Rain Bird Central Control Systems automatically shut OFF or suspend irrigation to the entire system or to specific areas only (tee box, fairway, green, etc.) and can turn ON or resume irrigation when weather conditions return to the acceptable range for irrigation

Automatic Notification

• • WS-PRO2 Weather Station, using Rain Bird® Messenger,™ can notify you wherever you are, at the central control or via paging, text messaging or e-mail when alarm conditions exist.

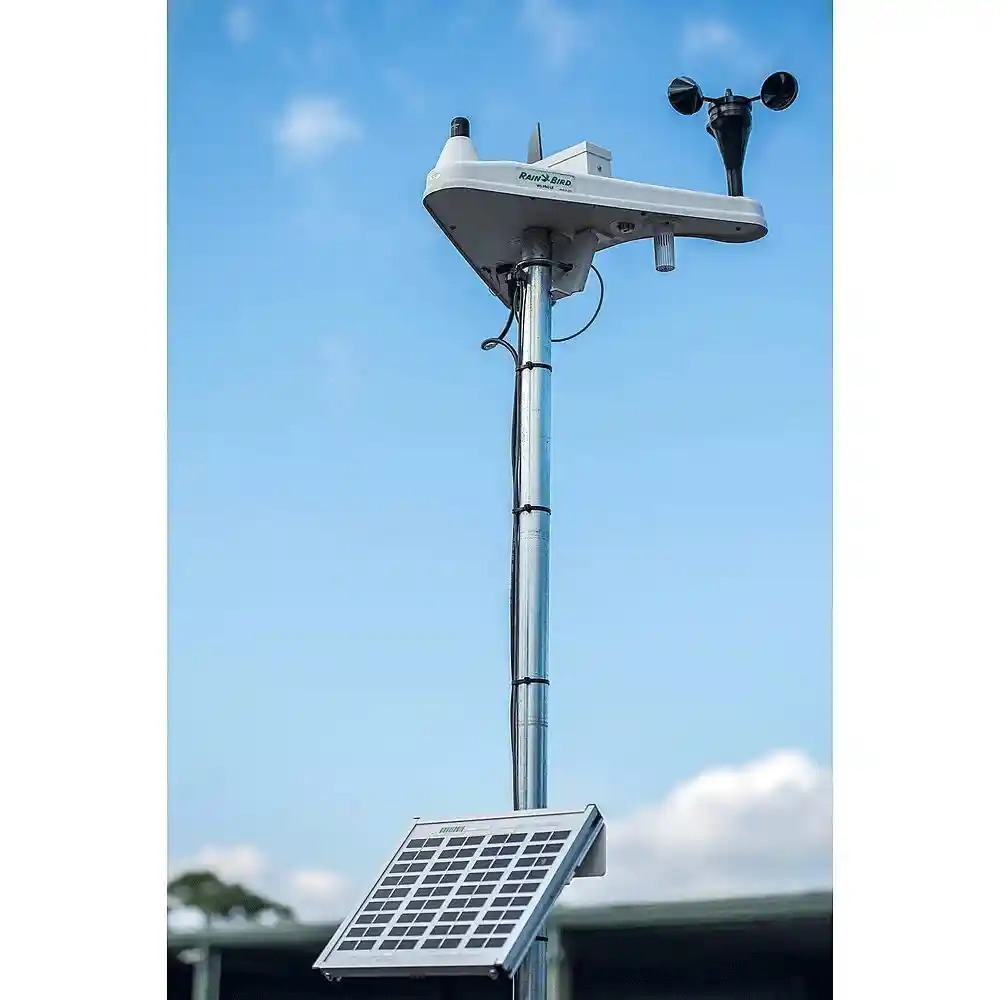

WS-PRO LT

• Compatible Modules: Automatic ET, Multiple Weather Station
• Communication System: Short Haul
• Transmission Range: 20,000 ft (6,096 m)
• Power Supply Required: 16 to 2 VDC
• Air Temperature Sensor Range: -40° to 122°F (-40° to 50° C)
• Air Temperature Sensor Accuracy: ±0.9°F (±0.5°C)
• Relative Humidity Sensor Range: 0 – 100%
• Relative Humidity Sensor Accuracy: ±5% – 90% to 100% RH, ±3% – 10% to 95% RH
• Rain Gauge Sensor Resolution: 0.04″ (1mm)
• Solar Radiation Sensor Accuracy: ±2.5%
• Wind Direction Sensor Range: 350° mechanical, 352° electrical
• Wind Speed Sensor Starting Threshold: 0.78 ms-1 (1.75 mph)

WS-PRO2

• Compatible Modules: Automatic ET, Multiple Weather Station, Smart Weather™ Alarms, Smart Messenger
• Communication System: Short Haul
• Transmission Range: 20,000 ft (6,096 m)
• Power Supply Required: 9.5 to 16 VDC
• Optional Power Supplies: Solar Panel
• Air Temperature Sensor Range: -13° to 122°F (-25° to 50°C)
• Air Temperature Sensor Accuracy: ±2.7°F (±1.5°C)
• Relative Humidity Sensor Range: 0 – 100%
• Relative Humidity Sensor Accuracy: ±6% – 90% to 100% RH, ±3% – 0% to 90% RH
• Rain Gauge Sensor Resolution: 0.01″ (0.25 mm)
• Solar Radiation Sensor Accuracy: ±3%
• Wind Direction Sensor Range: 350° mechanical, 356° electrical
• Wind Direction Sensor Accuracy: ±4°
• Wind Speed Sensor Starting Threshold: 0.4 ms-1 (0.9 mph)
