360 HYBIRD
360 HYBIRD

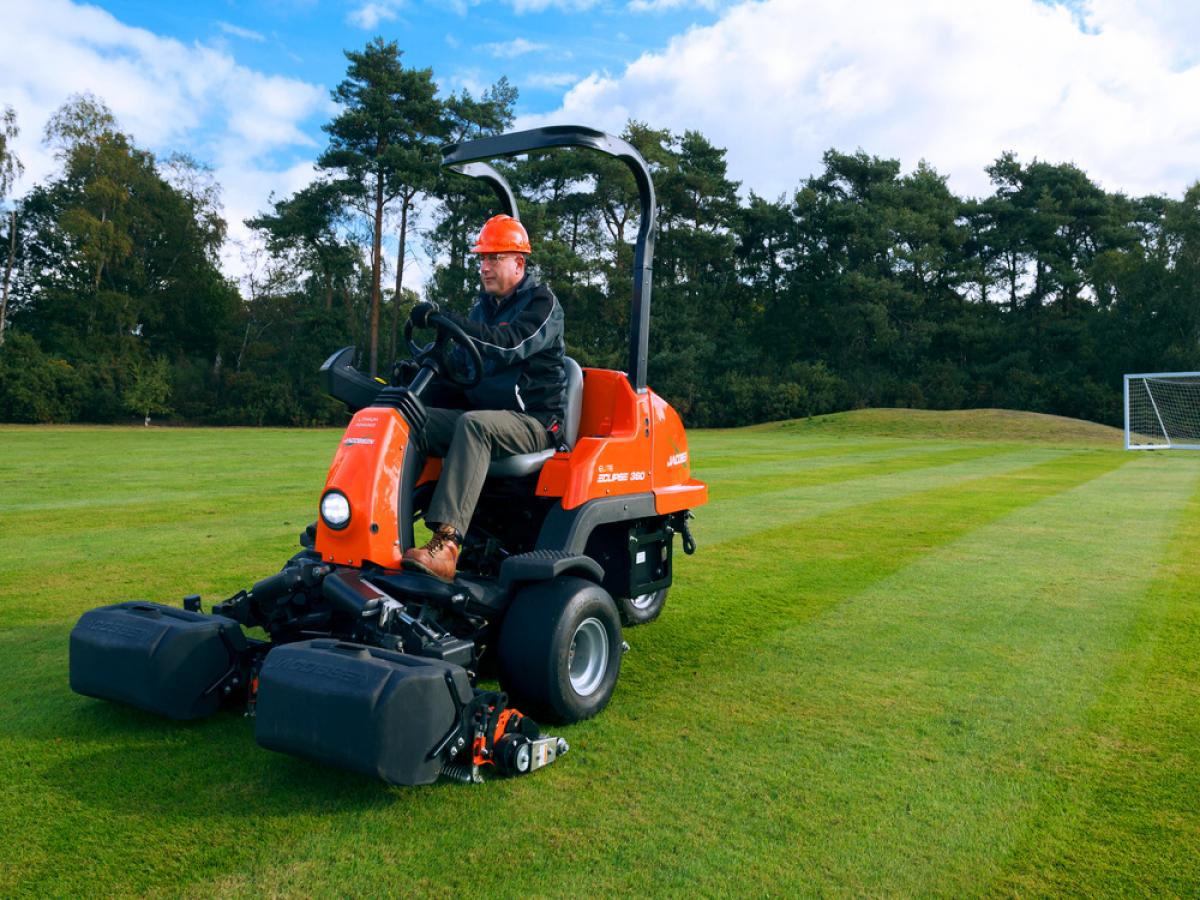

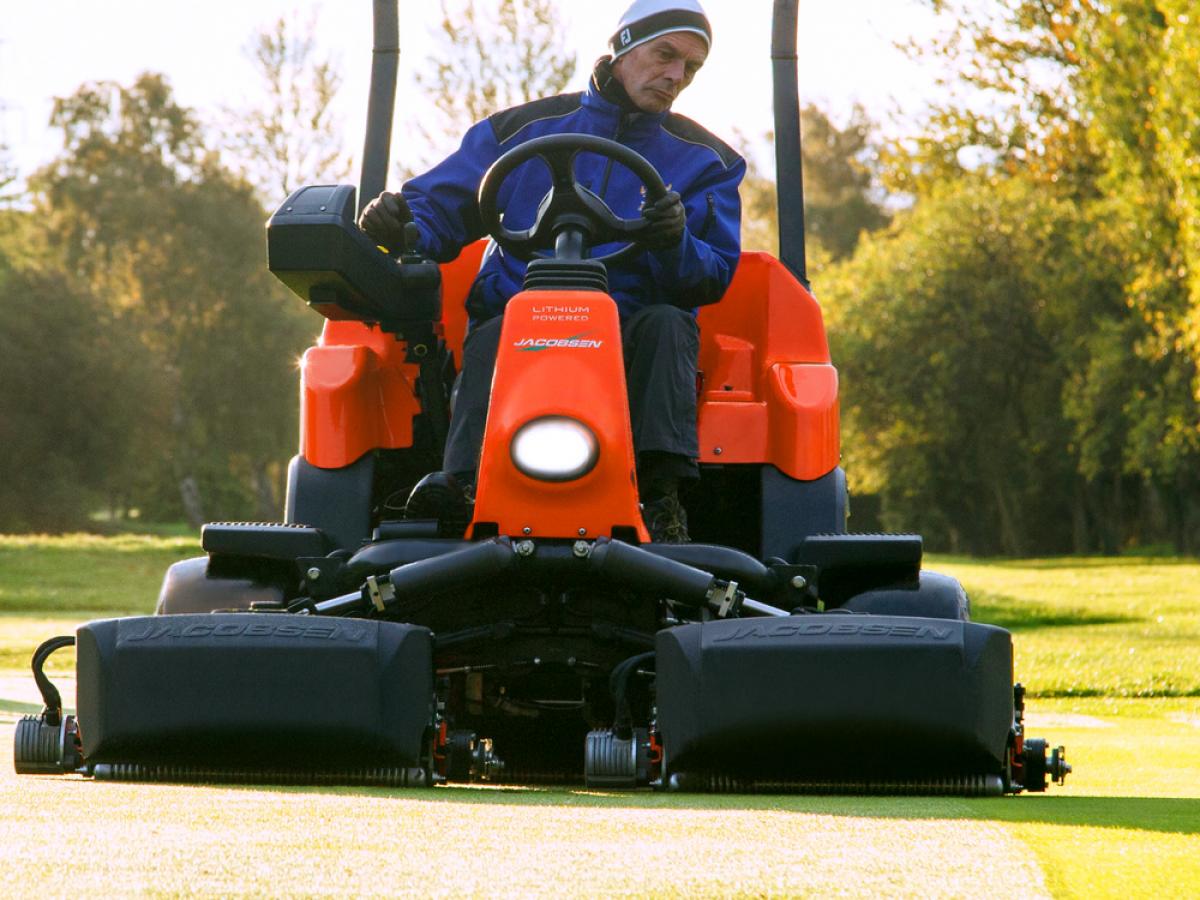

Outstanding technology and a hydraulic-free design make the Eclipse 360 Hybrid one of the most consistent, quietest, and highest quality cuts available for your golf course.
KEY FEATURES
KEY ATTRIBUTES
| KEY ATTRIBUTES | |
|---|---|
| MOWER CUTTING WIDTH | 62″ (1.6 m) |
| MOWER HEIGHT OF CUT | 0.062 – 0.438″ (1.6 – 11.1 mm) |
| BLADES PER REEL | 7, 9, 11 or 15 |
| FUEL/BATTERY CAPACITY (+RUN TIME) | FUEL/BATTERY CAPACITY (+RUN TIME) Hybrid Gas – 5 gal. (19 L) 10 hrs. approx. run time, Hybrid diesel – 5 gal. (19 L) 15 hrs. approx. run time |
| MOWER ENGINE | Hybrid Gas – 13.3 HP (9.92 kW) Air cooled V twin. Hybrid Diesel – Kubota 13.3 HP (9.92 kW) |
| CUTTING CAPACITY | 2.37 acres (0.96 hectare) / hr (1.6 m x 6 kph) |
| MOWER WARRANTY | 2 Years |

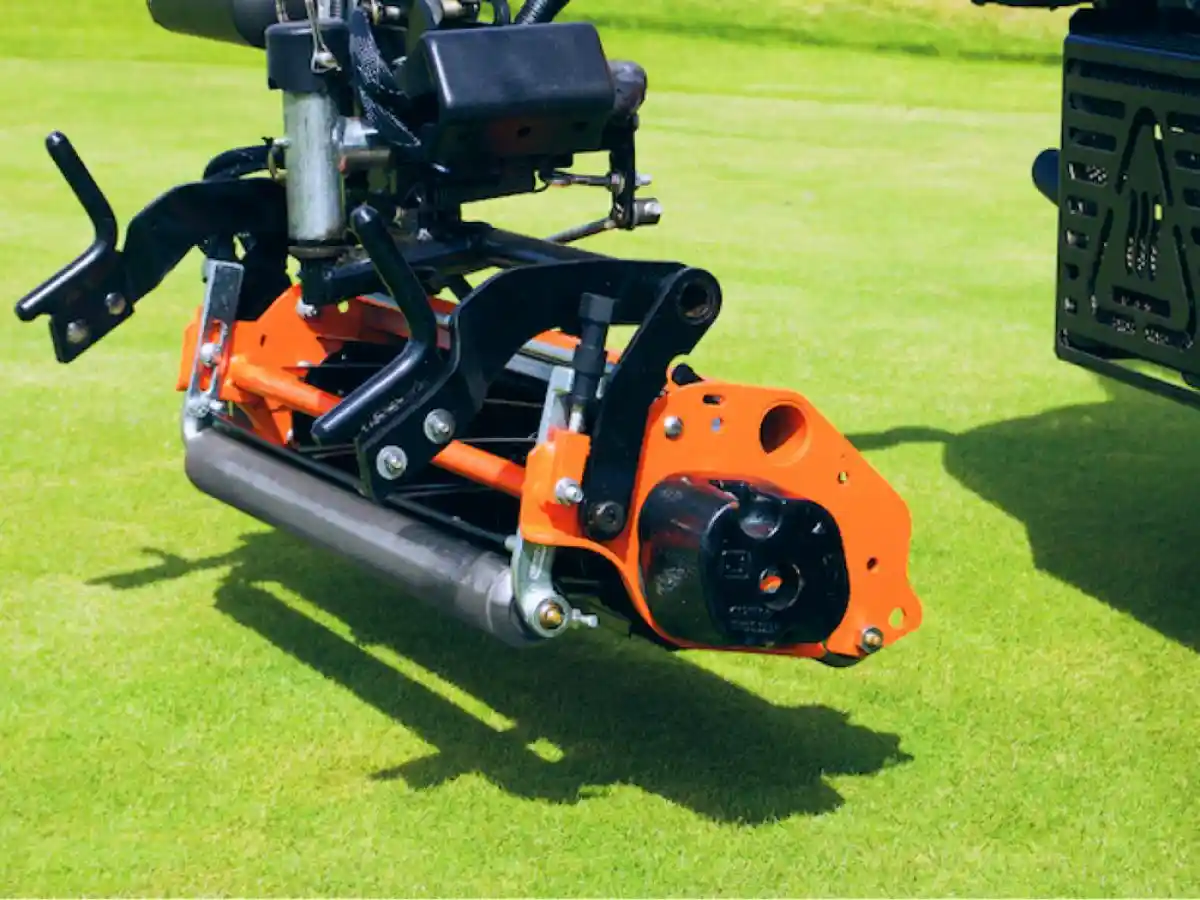

DECKS AND CUTTING UNITS
| REELS AND BLADES | |
|---|---|
| NUMBER AND SIZE | 3 x 22″ (55.88 cm) reels; 5″ (127 mm) diameter |
| BLADE MATERIAL | Hardened, high manganese carbon steel |
| CUTTING UNIT LIFT | 0.036 – 0.250″ (0.91 – 6.35 mm) with 15 blade reel, electronically adjustable |
TRACTION, BRAKES AND SPEED
| TRACTION, BRAKES AND SPEED | |
|---|---|
| TRACTION DRIVE | Front / 2WD – AC; 4.4 HP (3.3 kW) continuous (Optional 3WD – PM; 3.2 HP (2.4 kW)) |
| REEL DRIVE | One brushless DC motor per reel; 1.3 HP (0.97 kW) continuous |
| HYDRAULIC SYSTEM | No Hydraulic Oil |
| SERVICE BRAKES | Dynamic regenerative braking system |

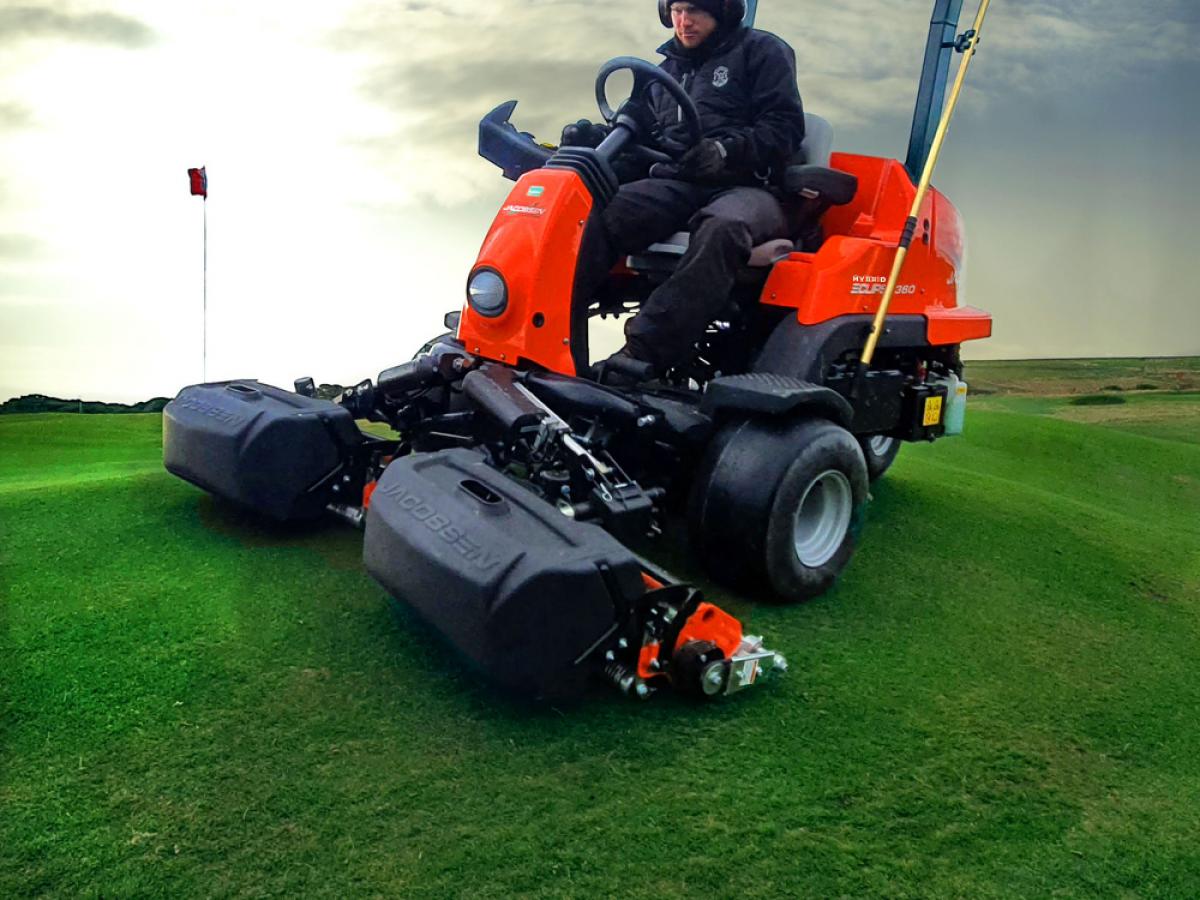

| PARKING BRAKES | Automatic electro-magnetic multi-plate |
| STEERING | Variable ratio Drive-by-wire steering with feedback control |
| MOWING SPEED | 0 – 5.0 mph (0 – 8.9 kph); electronically adjustable max speed |
| TRANSPORT SPEED | 0 – 9.0 mph (0 – 14.5 kph); electronically adjustable max speed |
| TIRES | 18 x 10.5 x 8 4-ply |
WEIGHT AND DIMENSIONS
| WEIGHT AND DIMENSIONS | |
|---|---|
| WEIGHT | Hybrid Gas: 1322 lbs. (599 kg) with all fluids, Hybrid Diesel: 1362 lbs. (618 kg) with all fluids |
| LENGTH (LESS CATCHERS) | 101″ (2.56 m) (with Catchers) |
| OVERALL HEIGHT INCLUDING ROPS | 79.3″ (2.01 m) |
| WHEEL BASE | 52″ (1.32 m) |
| TRANSPORT WIDTH | 67.7″ (1.72 m) |
| WORKING WIDTH | 67.7″ (1.72 m) |
| FLUID CAPACITIES | – |
