E-Z-GO EXPRESS L6

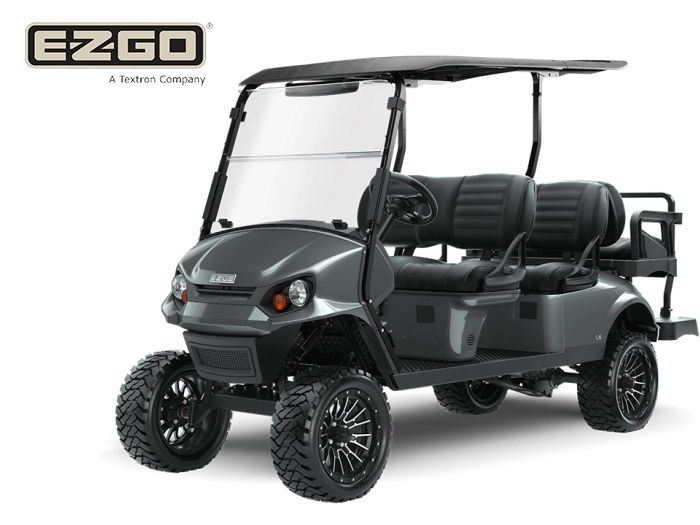

E-Z-GO Express L6
Escape from reality with the E‑Z‑GO Express™ L6.  With a choice of a powerful 13.5-HP closed-loop EFI gas powertrain or our maintenance-free ELiTE lithium battery packs, the E‑Z‑GO Express L6 will elevate any outing. The enhanced front suspension on Express L6 ELiTE offers enhanced drivability and maneuverability with every ride. With more range and improved drivability, you will always be ready to go with the E‑Z‑GO Express L6.
Vehicle Highlights
New Modular Canopy
Featuring a sleek new design with a built-in water management system and integrated hand grasps, the new modular canopy will give your ride a fresh look.

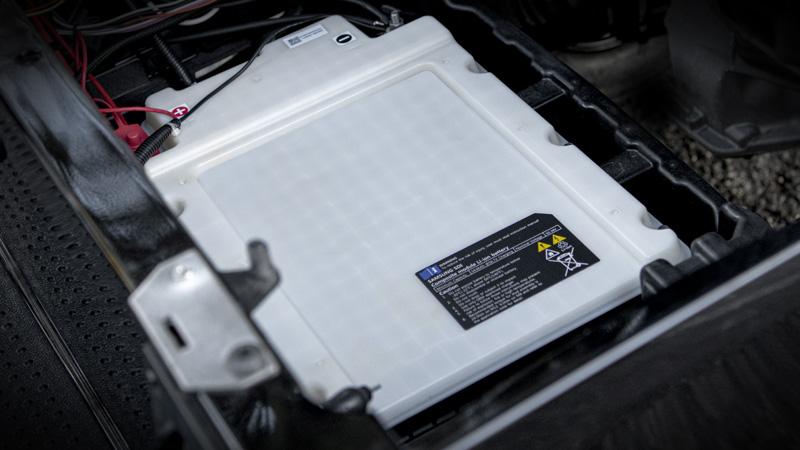

ELiTE Lithium Battery Pack Options
With the choice of the 4.2 twin or 6.2 triple maintenance-free ELiTE lithium battery pack, you will always be good to go.
Lifted Suspension
Push the limits with standard lifted suspension.

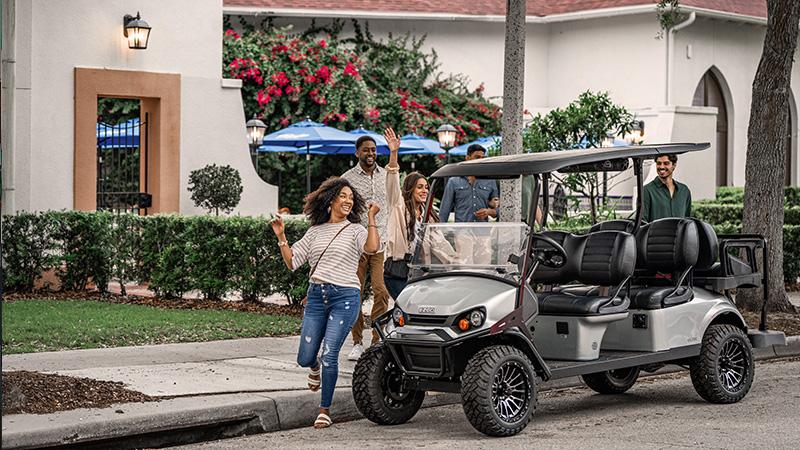

Automatic Parking Brake
Now standard on ELiTE vehicles, experience superior efficiency with an automatic parking brake. Only offered with electric powertrains.
Specs
| GAS | ELITE LITHIUM | |
|---|---|---|
| OVERALL LENGTH | 144 in (364 cm) | 142.8 in (363 cm) |
| OVERALL WIDTH | 49 in (125 cm) | 50.5 in (129 cm) |
| OVERALL HEIGHT (W/O ROOF) | 55.5 in (141 cm) | 50.5 in (129 cm) |
| OVERALL HEIGHT (W/ ROOF) | 83 in (211 cm) | 76.2 in (194 cm) |
| WHEEL BASE | 97 in (245 cm) | 94.5 in (240 cm) |
| FRONT WHEEL TRACK | 38.5 in (98 cm) | 40.2 in (102 cm) |
| REAR WHEEL TRACK | 38.5 in (98 cm) | 41.3 in (105 cm) |
| GROUND CLEARANCE @ DIFFERENTIAL | 7.0 in (18 cm) | |
| GAS | ELITE LITHIUM | |
|---|---|---|
| VALVE TRAIN | Single Cylinder OHV | – |
| MOTOR TYPE | 4 Cycle 24.5 cu in (401 cc) | 56 Volt AC |
| FUEL SYSTEM | Closed-Loop Electronic Fuel Injection | – |
| HORSEPOWER (KW) | 13.5 hp (10.1 kW) Exceeds SAE J1940 Std | 14.9 hp (11.1 kW) Peak |
| ELECTRICAL SYSTEM | Starter/Generator – Solid State Regulator | 56 Volt |
| BATTERIES (QTY/TYPE) | One, 12 Volt Maintenance Free | Two Li-Ion 56 Volt Modules (Standard Configuration) |
| KEY OR PEDAL START | Pedal Start | |
| AIR CLEANER | Replaceable Dry Cartridge | – |
| LUBRICATION | Pressurized Oil System | – |
| OIL FILTER | Spin-On | – |
| BATTERY CHARGER | – | 56.7 V 811W World Charger |
| SPEED CONTROLLER | – | 350 Amp AC |
| DRIVETRAIN | Continuously Variable Transmission (CVT) | Motor Shaft Direct Drive |
| TRANSAXLE | Differential with Helical Gears | Clutch-Type Limited Slip Diferential with Helical Gears |
| GEAR SELECTION | Forward-Reverse | Dash Mounted Forward-Neutral-Reverse |
| REAR AXLE RATIO | 11.47:1 (Forward); 14.35:1 (Reverse) | 17:1 |
| ELITE LITHIUM | GAS | |
|---|---|---|
| SEATING CAPACITY | 6-Passenger | |
| DRY WEIGHT | 1150 lb (522 kg) (wihtout battery) | 1072 lb (486 kg) (without batteries) |
| CURB WEIGHT | 1190 lb (540 kg) | 1225 lb (556 kg) |
| VEHICLE LOAD CAPACITY | 1200 lb (544 kg) | 1153 lb (524 kg) |
| TURNING RADIUS | 14.4 ft (4.4 m) | |
| OUTSIDE CLEARANCE CIRCLE | 25.5 ft (7.8 m) | 31 ft (9.4 m) |
| SPEED (LEVEL GROUND) | 17 mph ± 0.5 mph (26 kph ± 0.8 kph) | 19 mph (31 kph) |
| ELITE LITHIUM | GAS | |
|---|---|---|
| STEERING | Self-Compensating Rack and Pinion | |
| SUSPENSION | Leaf Springs with Hydraulic Shock Absorbers | |
| SERVICE BRAKE | Rear Wheel Mechanical Self-Adjusting Drum | |
| PARKING BRAKE | Self-Compensating, Single Point Engagement | Automatic Electro-Magnetic |
| TIRES | 1205/65 Loadstar Tire with 10-in. Daytona Wheel (Standard Package), 215/40 Paramount M/T on 12-in. Rogue Wheel (Cruiser Package) | |
| ELITE LITHIUM | GAS | |
|---|---|---|
| FRAME | Welded Steel with Powder-Coat Protection | |
| BODY & FINISH | Injection Molded TPO | |

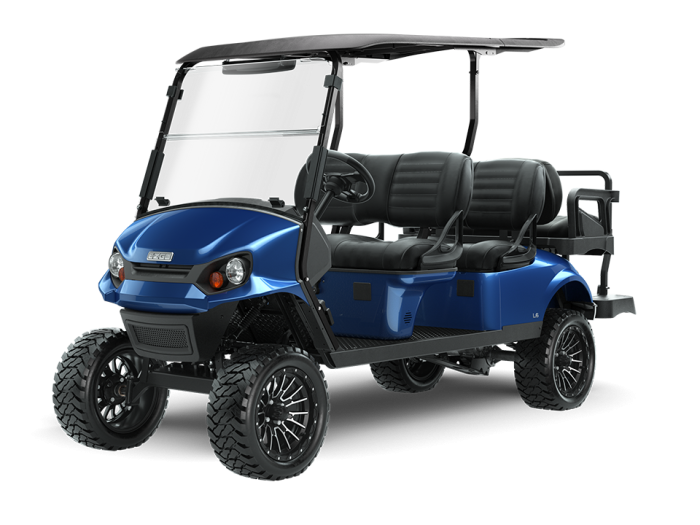

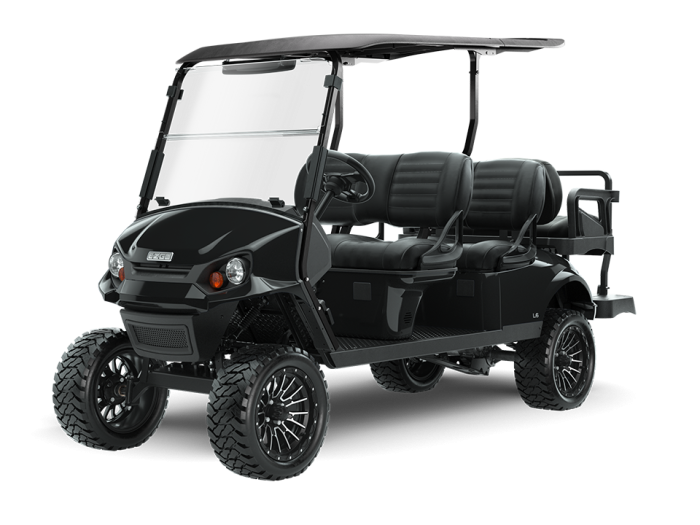

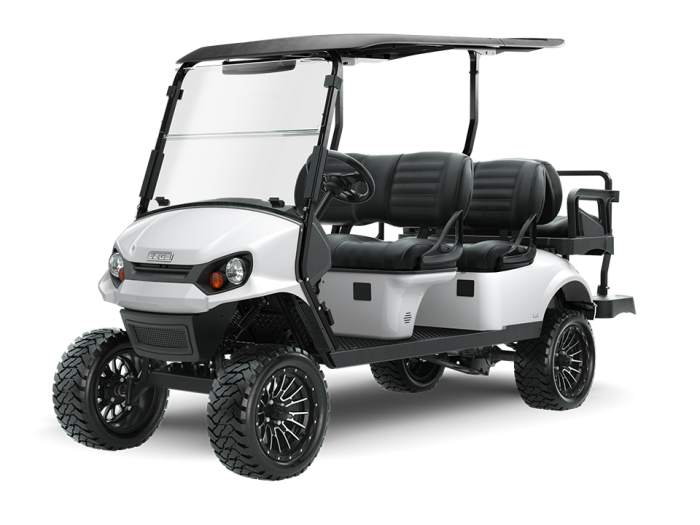

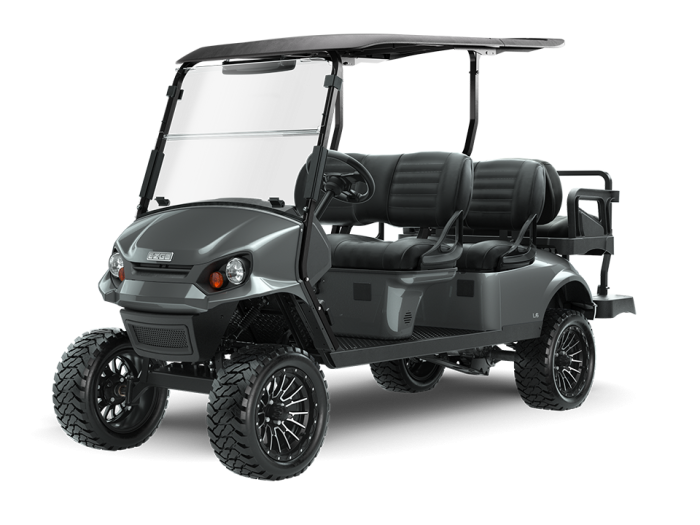

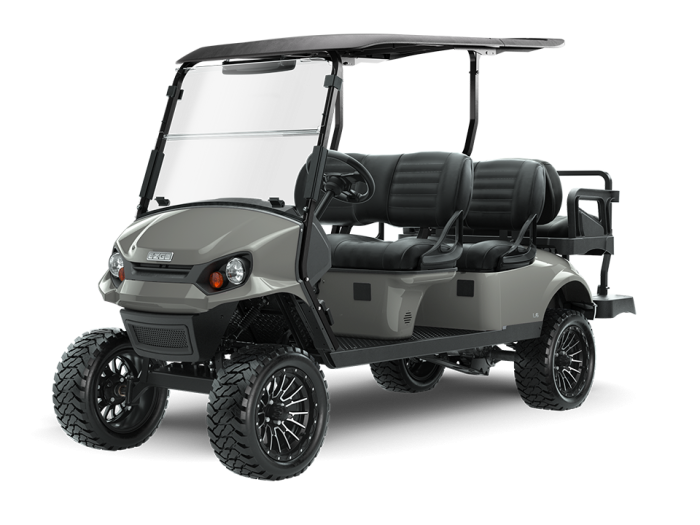

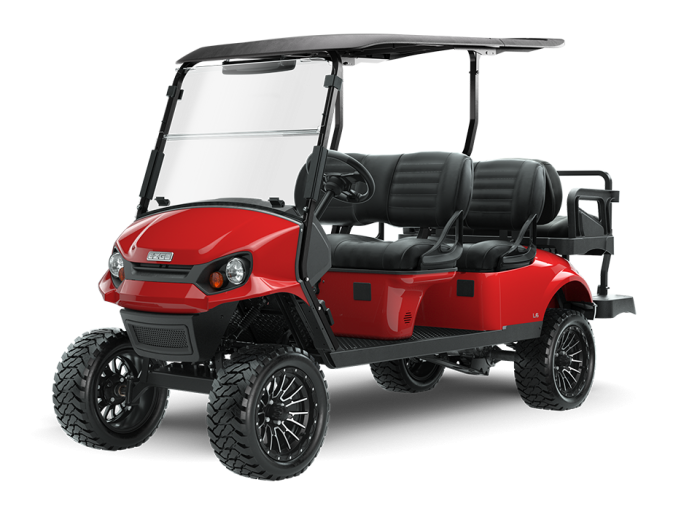

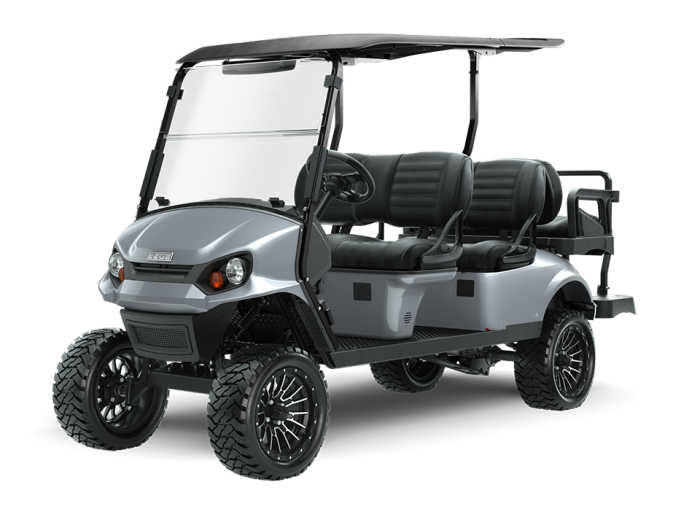

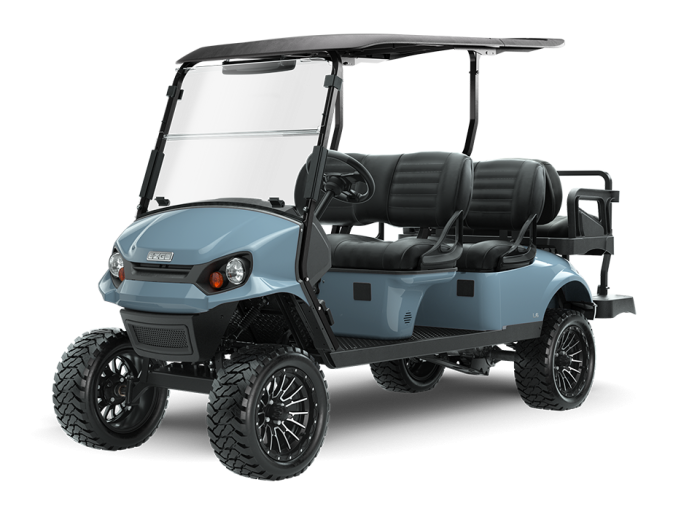

| AVAILABLE BODY COLORS | Black, Electric Blue, Flame Red, Inferno Red, Metallic Charcoal, Ocean Gray, Platinum, Bright White, Slate | |
| AVAILABLE BODY COLORS | Black, Grey on Black, White on Beige | |
| AVAILABLE PREMIUM SEAT COLORS | Black, Mushroom, Grey | |
