• No tools required for assembly, disassembly, or cleaning maintenance with easy snap fit nozzles and deflectors

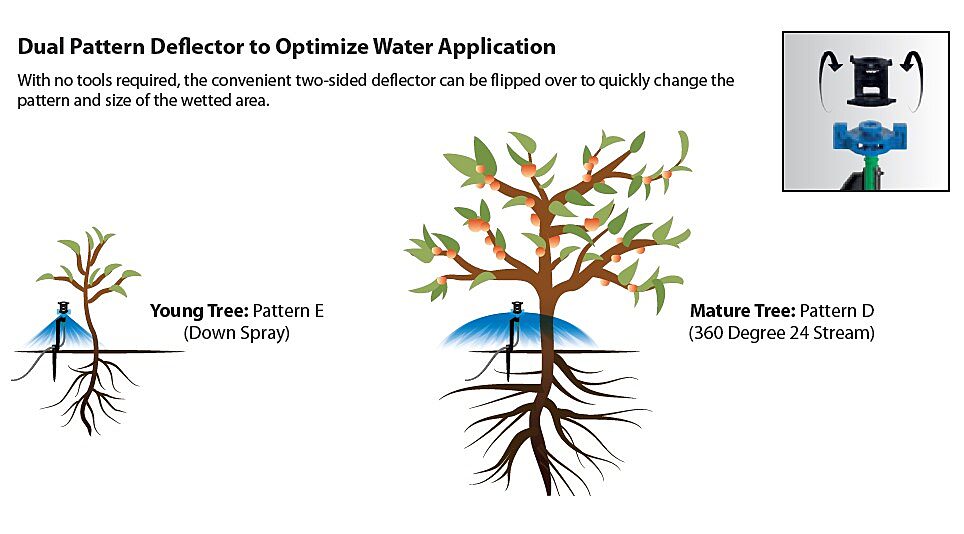

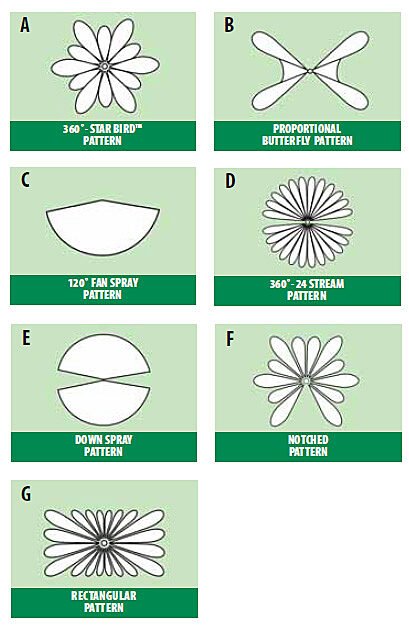

• Interchangeable nozzles and deflectors to change flow rates or spray patterns as needed
• All sprinkler spray patterns are aligned and fixed in position to the stake.  Stake does not wilt or twist, even in the harshest environments
• Color-coded nozzles for easy identification
• Less maintenance required with no moving parts
• Constructed with Ultraviolet (UV) stabilized resin to protect from sun damage and chemicals
• Order preassembled from the factory or as individual components for field customization

Operating Pressure

• 10 to 30 psi (0.69 to 2.07 bar)

Flow Range

• 3.7 to 30.6 gph (13.8 to 115.7  l/h)

Wetted Diameter Range

• 3 to 28 feet (0.91 to 8.5m)

Filtration

• Recommendation varies by nozzle selection
• Ranges from 80 to 200 mesh (74 to 180 micron)

Distribution/Transfer Tubing

• Standard length in assembly: 36” (0.91 m), call for custom length options 1-800-HELLO-AG
• Tubing Size: OD: 0.25” (6.4 mm), ID: 0.17”  (4.3 mm), wall thickness: 0.04” (1mm)

Packaging Data

• Assembled sprays can be ordered in increments of 1; case quantity of 400
• Nozzles and deflectors can be ordered in increments of 200 pieces; case quantity of nozzles is 3,000, case quantity of deflectors is 5,000
• Stakes can be ordered in increments of 1; case quantity of 130
• Transfer assemblies can be ordered in increments of 100; case quantity of 700
